Light Panel Prototype
GSAPP, Columbia University
Collaboration: Danila Babko-Malyi . Qian Fang . Yang Liu
Critics: Mark Bearak . Brigette Borders
GSAPP, Columbia University
Collaboration: Danila Babko-Malyi . Qian Fang . Yang Liu
Critics: Mark Bearak . Brigette Borders
![](https://freight.cargo.site/t/original/i/2dc74782db5b006298b9b841529149e7fcdda4a16765413fecbdfa203b945d81/2.jpg)

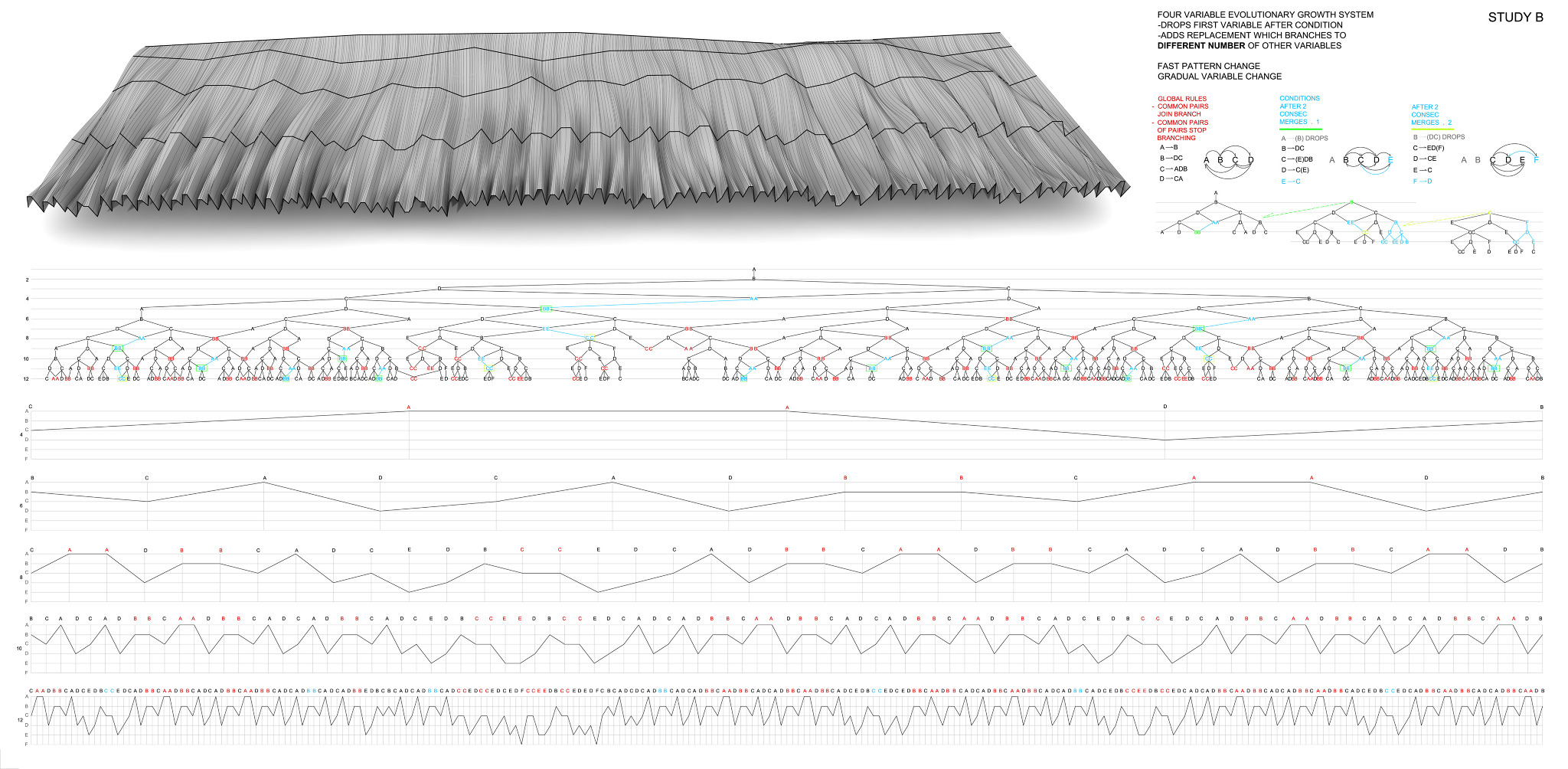

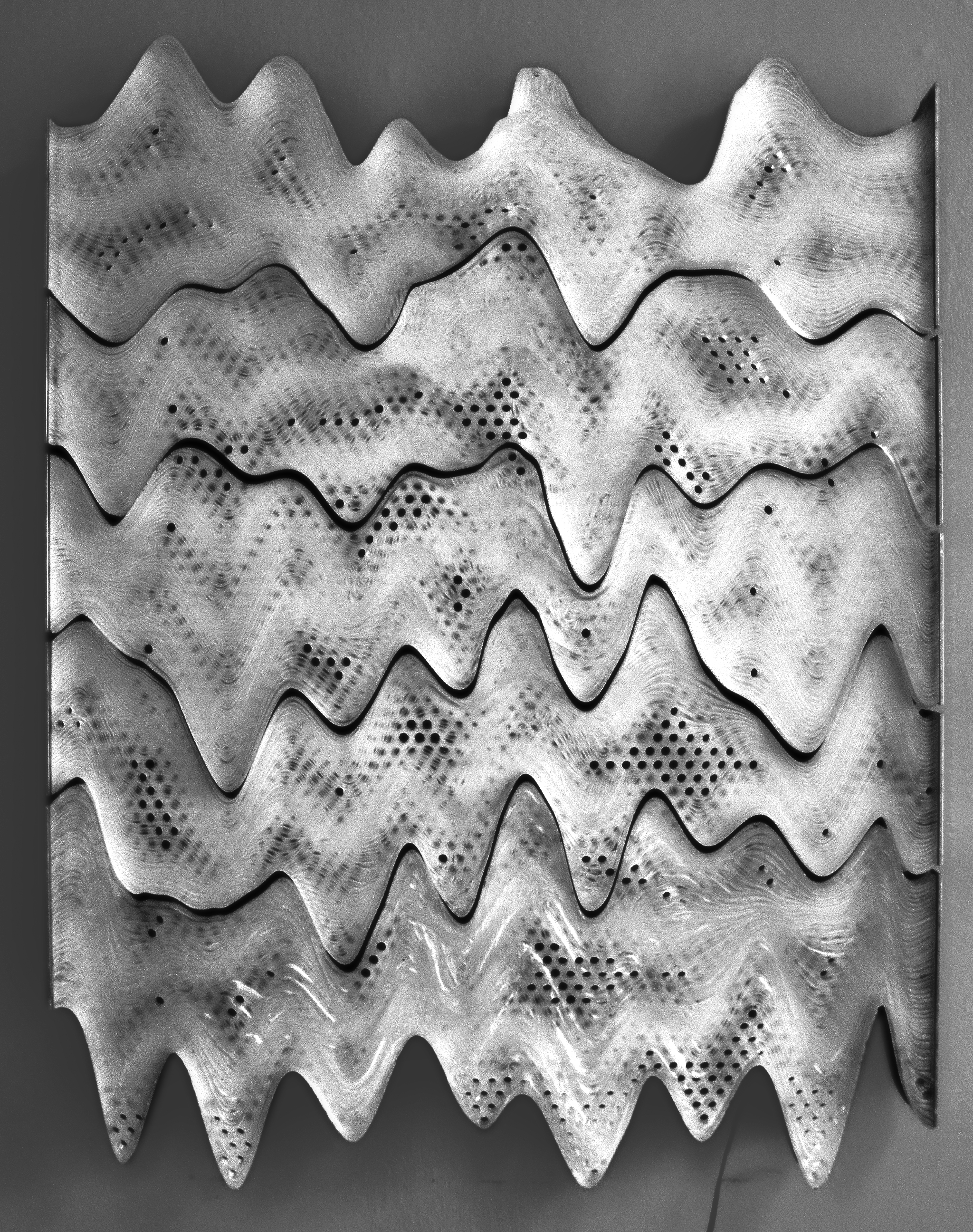

Light panel fabrication project exploring parametric design processes. A surface is derived from mapping a bidirectional L-system which structures a pattern in the depth of the light panels. Isocurves are then extracted from the surface and manipulated based upon their depth which forms the basic outline of each panel. A second layer of circle manipulation with the isocurves controls the light exposure.
![](https://freight.cargo.site/t/original/i/53d4c9c16798dd49c30018e18c4521b50f716b8e8062f9051573cdc56f9fae15/final-elv_o.jpg)
![](https://freight.cargo.site/t/original/i/fd937d6a95b4a23df9d195e9930cb50c0fd8961dafd14b130e783bc8ad632f9a/18_o_o.jpg)
